Select corresponding features in all drawing views

Edit ArticleEdit Article

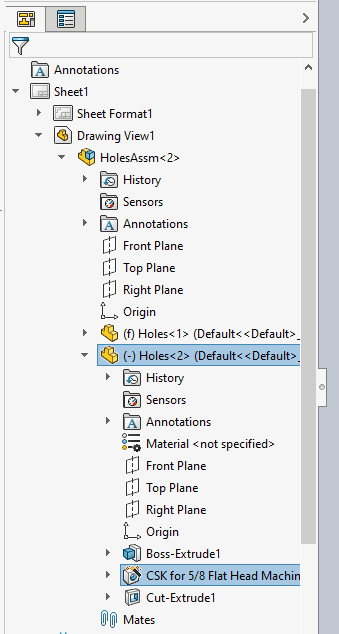

Feature selected in the drawing view
Feature selected in the drawing view

This VBA macro demonstrates how to find the pointers for the input feature from the model space in each view in the drawing and select it.

  • Open the model drawing views are created from (i.e. assembly or part)
  • Select any feature
  • Run macro. Macro stops an execution
  • Activate drawing
  • Continue the macro. All corresponding features are selected in each view

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    Dim swFeat As SldWorks.Feature

    Dim swSelMgr As SldWorks.SelectionMgr

    Set swSelMgr = swModel.SelectionManager

    Set swFeat = swSelMgr.GetSelectedObject6(1, -1)

    'activate drawing
    Stop

    Dim swDraw As SldWorks.DrawingDoc

    Set swDraw = swApp.ActiveDoc

    Set swSelMgr = swDraw.SelectionManager

    Dim vViews As Variant

    vViews = swDraw.GetViews()(0)

    Dim i As Integer

    Dim swSelData As SldWorks.SelectData
    Set swSelData = swSelMgr.CreateSelectData

    swDraw.ClearSelection2 True

    For i = 0 To UBound(vViews)

        Dim swView As SldWorks.View

        Set swView = vViews(i)

        If swView.ReferencedDocument Is swModel Then

            Dim swViewFeat As SldWorks.Entity
            Set swViewFeat = swFeat

            Set swViewFeat = swView.GetCorresponding(swFeat)

            swSelData.View = swView

            If Not swViewFeat Is Nothing Then
                Debug.Print swViewFeat.Select4(True, swSelData)
            Else
                Debug.Print "Failed to get corresponding feature"
            End If

        End If

    Next

End Sub
