Cut-lists and sheet metal flat patterns
Cut-lists and sheet metal flat patterns

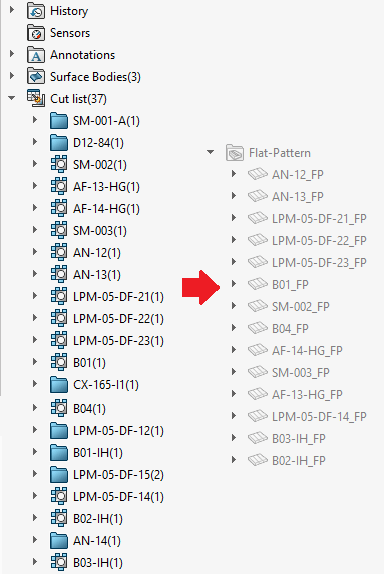

This VBA macro renames all sheet metal flat pattern features with the name of the corresponding cut-list item.

This macro can be used in conjunction with Rename Cut List Features macro.

In order to avoid the name conflict, suffix is added to flat pattern features as below.

Const SUFFIX As String = "_FP"

Macro will automatically add the index to the flat pattern name which shares the same cut list.

Watch video demonstration

Const SUFFIX As String = "_FP"

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

try_:
    On Error GoTo catch_

    Dim vCutListFeats As Variant
    vCutListFeats = GetCutListFeatures(swModel)

    If Not IsEmpty(vCutListFeats) Then

        Dim vFlatPatternFeats As Variant
        vFlatPatternFeats = GetFlatPatternFeatures(swModel)

        If Not IsEmpty(vFlatPatternFeats) Then
            RenameFlatPatternsWithCutList swModel, vFlatPatternFeats, vCutListFeats
        Else
            Err.Raise vbError, "", "No flat pattern features found"
        End If

    Else
        Err.Raise vbError, "", "No cut-list items found"
    End If

    GoTo finally_
catch_:
    swApp.SendMsgToUser2 Err.Description, swMessageBoxIcon_e.swMbStop, swMessageBoxBtn_e.swMbOk
finally_:

End Sub

Function GetCutListFeatures(model As SldWorks.ModelDoc2) As Variant
    GetCutListFeatures = GetFeaturesByType(model, "CutListFolder")
End Function

Function GetFlatPatternFeatures(model As SldWorks.ModelDoc2) As Variant
    GetFlatPatternFeatures = GetFeaturesByType(model, "FlatPattern")
End Function

Function RenameFlatPatternsWithCutList(model As SldWorks.ModelDoc2, vFlatPatternFeats As Variant, vCutListFeats As Variant)

    Dim i As Integer

    For i = 0 To UBound(vFlatPatternFeats)

        Dim swFlatPatternFeat As SldWorks.Feature
        Dim swFlatPattern As SldWorks.FlatPatternFeatureData

        Set swFlatPatternFeat = vFlatPatternFeats(i)

        Set swFlatPattern = swFlatPatternFeat.GetDefinition

        Dim swFixedFace As SldWorks.Face2
        Set swFixedFace = swFlatPattern.FixedFace2

        Dim swBody As SldWorks.Body2
        Set swBody = swFixedFace.GetBody

        Dim swCutListFeat As SldWorks.Feature
        Set swCutListFeat = FindCutListFeature(vCutListFeats, swBody)

        If Not swCutListFeat Is Nothing Then
            If swFlatPatternFeat.Name <> swCutListFeat.Name Then

                Dim featName As String

                featName = swCutListFeat.Name + SUFFIX
                Dim index As Integer
                index = 0

                While model.FeatureManager.IsNameUsed(swNameType_e.swFeatureName, featName)
                    index = index + 1
                    featName = swCutListFeat.Name + CStr(index) + SUFFIX
                Wend

                swFlatPatternFeat.Name = featName
            End If
        End If

    Next

End Function

Function FindCutListFeature(vCutListFeats As Variant, body As SldWorks.Body2) As SldWorks.Feature

    Dim i As Integer

    For i = 0 To UBound(vCutListFeats)

        Dim swCutListFeat As SldWorks.Feature
        Set swCutListFeat = vCutListFeats(i)

        Dim swBodyFolder As SldWorks.BodyFolder
        Set swBodyFolder = swCutListFeat.GetSpecificFeature2

        Dim vBodies As Variant

        vBodies = swBodyFolder.GetBodies

        If ContainsBody(vBodies, body) Then
            Set FindCutListFeature = swCutListFeat
        End If

    Next

End Function

Function ContainsBody(vBodies As Variant, body As SldWorks.Body2) As Boolean

    If Not IsEmpty(vBodies) Then

        Dim i As Integer

        For i = 0 To UBound(vBodies)

            Dim swCutListBody As SldWorks.Body2
            Set swCutListBody = vBodies(i)

            If swApp.IsSame(swCutListBody, body) = swObjectEquality.swObjectSame Then
                ContainsBody = True
                Exit Function
            End If
        Next

    End If

    ContainsBody = False

End Function

Function GetFeaturesByType(model As SldWorks.ModelDoc2, typeName As String) As Variant

    Dim swFeats() As SldWorks.Feature

    Dim swFeat As SldWorks.Feature

    Set swFeat = model.FirstFeature

    Do While Not swFeat Is Nothing

        ProcessFeature swFeat, swFeats, typeName

        Set swFeat = swFeat.GetNextFeature

    Loop

    If (Not swFeats) = -1 Then
        GetFeaturesByType = Empty
    Else
        GetFeaturesByType = swFeats
    End If

End Function

Sub ProcessFeature(thisFeat As SldWorks.Feature, featsArr() As SldWorks.Feature, typeName As String)

    If thisFeat.GetTypeName2() = typeName Then

        If (Not featsArr) = -1 Then
            ReDim featsArr(0)
            Set featsArr(0) = thisFeat
        Else
            Dim i As Integer

            For i = 0 To UBound(featsArr)
                If swApp.IsSame(featsArr(i), thisFeat) = swObjectEquality.swObjectSame Then
                    Exit Sub
                End If
            Next

            ReDim Preserve featsArr(UBound(featsArr) + 1)
            Set featsArr(UBound(featsArr)) = thisFeat
        End If

    End If

    Dim swSubFeat As SldWorks.Feature
    Set swSubFeat = thisFeat.GetFirstSubFeature

    While Not swSubFeat Is Nothing
        ProcessFeature swSubFeat, featsArr, typeName
        Set swSubFeat = swSubFeat.GetNextSubFeature
    Wend

End Sub
