This VBA example demonstrates how to offset the wire body of the SOLIDWORKS curve and display the preview using SOLIDWORKS API.

Wire bodies are type of bodies which correspond to edges and curves.

Wire bodies are used in the features such as composite curve, curve through XYZ, etc. Those bodies are also used to generate some types of previews, e.g. preview of the fillet feature

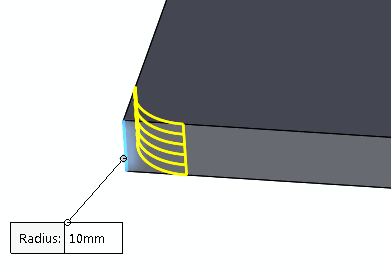

Fillet preview
Fillet preview

To run this example

  • Create a composite curve (or other type of the curve) on the Front plane, i.e. the normal is {0, 0, 1}
  • Run the macro. Macro extracts the body from the selected curve. This body would be a wire body. Macro offsets this body by 10 mm and displays the preview of the offset.
  • Macro stops execution. Once continued the temp body is destroyed

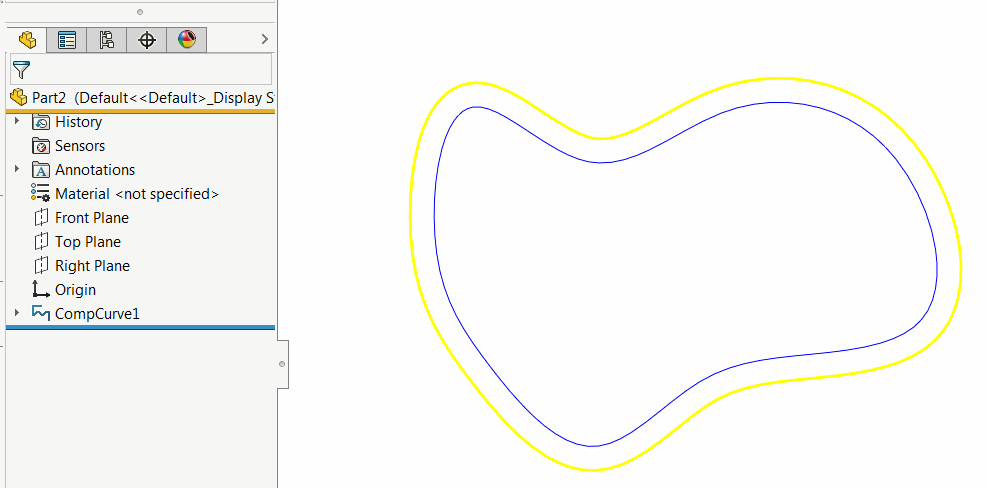

Offset wire body
Offset wire body
Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swSelMgr As SldWorks.SelectionMgr
        Set swSelMgr = swModel.SelectionManager

        Dim swEdge As SldWorks.Edge
        Set swEdge = swSelMgr.GetSelectedObject6(1, -1)

        If Not swEdge Is Nothing Then

            Dim swBody As SldWorks.Body2
            Set swBody = swEdge.GetBody()

            If swBody.GetType() = swBodyType_e.swWireBody Then

                Dim swOffsetBody As SldWorks.Body2
                Dim swNormVec As SldWorks.MathVector

                Dim swMathUtils As SldWorks.MathUtility
                Set swMathUtils = swApp.GetMathUtility

                Dim dVec(2) As Double
                dVec(0) = 0: dVec(1) = 0: dVec(2) = 1

                Set swNormVec = swMathUtils.CreateVector(dVec)

                Set swOffsetBody = swBody.OffsetPlanarWireBody(0.01, swNormVec, swOffsetPlanarWireBodyOptions_e.swOffsetPlanarWireBodyOptions_GapFillExtend)

                If swOffsetBody Is Nothing Then
                    Err.Raise vbError, "", "Failed to create offset body. Make sure that selected edge is on a plane with the normal specified in dVec variable"
                End If

                swOffsetBody.Display3 swModel, RGB(255, 255, 0), swTempBodySelectOptions_e.swTempBodySelectOptionNone

                Stop

                Set swOffsetBody = Nothing

            Else
                Err.Raise vbError, "", "Selected edge is not a wire body"
            End If

        Else
            Err.Raise "Edge is not selected"
        End If

    Else
        Err.Raise "Document is not open"
    End If

End Sub
