Read summary information from file using SOLIDWORKS API

Edit ArticleEdit Article

Summary Information of SOLIDWORKS file
Summary Information of SOLIDWORKS file

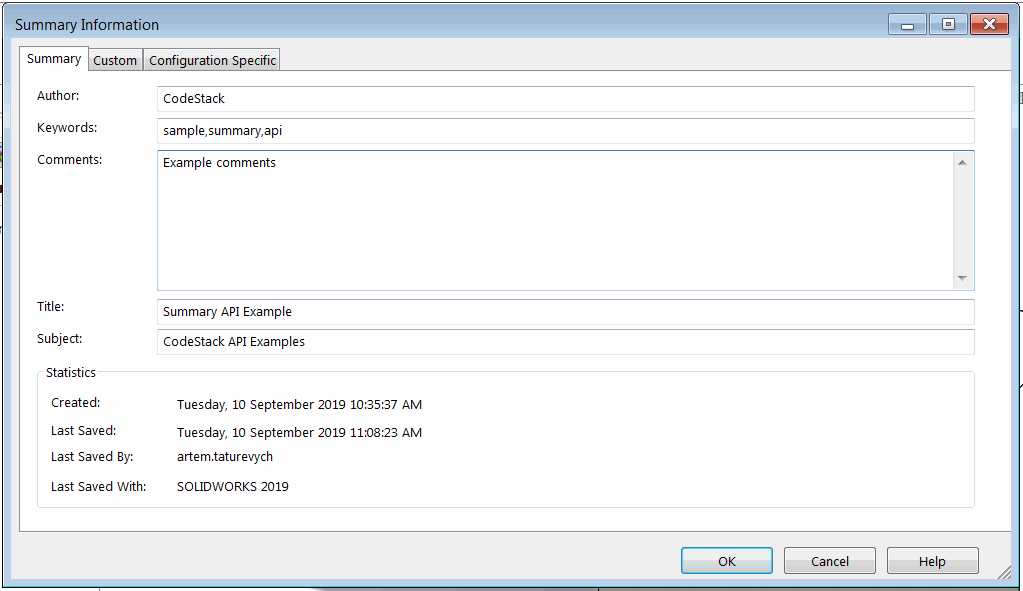

This VBA macro extracts the data from the Summary Information tab from custom properties of the active SOLIDWORKS document using SOLIDWORKS API. This information includes author, keywords, comments, title, creation info, last saved info.

Result is output to the immediate window of VBA editor in the following format:

Author: CodeStack
Keywords: sample,summary,api
Comments: Example comments
Title: Summary API Example
Subject: CodeStack API Examples
Created: Tuesday, 10 September 2019 10:35:37 AM
Last Saved: Tuesday, 10 September 2019 11:08:23 AM
Last Saved By: artem.taturevych
Last Saved With: SOLIDWORKS 2019

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc
    If Not swModel Is Nothing Then
        Debug.Print "Author: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoAuthor)
        Debug.Print "Keywords: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoKeywords)
        Debug.Print "Comments: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoComment)
        Debug.Print "Title: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoTitle)
        Debug.Print "Subject: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoSubject)
        Debug.Print "Created: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoCreateDate2)
        Debug.Print "Last Saved: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoSaveDate2)
        Debug.Print "Last Saved By: " & swModel.SummaryInfo(swSummInfoField_e.swSumInfoSavedBy)
        Debug.Print "Last Saved With: " & GetLastSavedWith(swModel)
        MsgBox "Please open model"
    End If
End Sub

Function GetLastSavedWith(model As SldWorks.ModelDoc2) As String
    Dim vHistory As Variant
    vHistory = model.VersionHistory()
    Dim vers As String
    vers = vHistory(UBound(vHistory))
    vers = Mid(vers, InStr(vers, "[") + 1, 4)
    GetLastSavedWith = "SOLIDWORKS " & vers
End Function
