VBA macro to capture SOLIDWORKS commands via API event handlers

Edit ArticleEdit Article
More 'Goodies'

This macro allows capturing of SOLIDWORKS command ids (e.g. toolbar, page button or context menu clicks). Commands are defined in the swCommands_e enumeration and can be called using the ISldWorks::RunCommand SOLIDWORKS API method.

This could be in particularly useful when certain SOLIDWORKS APIs are not available in the SDK.

All commands have user friendly names however they could not always match the names in the user interface. This fact could make it hard to find the correct command (as there are currently more than 3000 commands available). For example Hide Sketch command in User Interface corresponds to swCommands_Blank_Refgeom command id.

Capturing standard commands

This macro helps to capture the id of command directly from SOLIDWORKS by clicking the required command.

  • Run the macro. Form with list is displayed
  • Perform the required action (i.e. click button or menu item)
  • Command id is recorded and displayed in the list

Capturing sketch hide command id
Capturing sketch hide command id

The command id can be looked up in the the commands list

Hide sketch command id in swCommands_e enumeration
Hide sketch command id in swCommands_e enumeration

It is not required to explicitly use swCommands_e enumeration as it is defined in another interop (solidworks.interop.swcommands.dll). Instead command id can be defined as an integer or custom enumeration.

Capturing commands from the custom add-ins

For the standard SOLIDWORKS commands, User Command argument will be equal to 0. However commands cannot be defined for any custom add-in or Macro Buttons

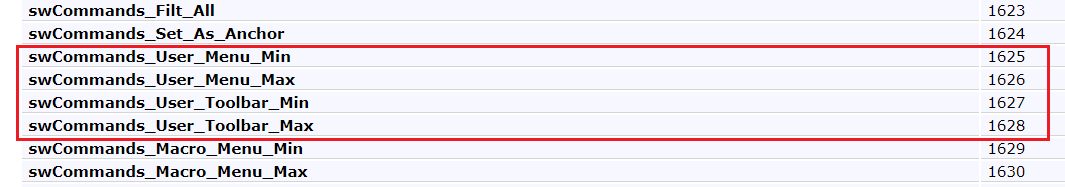

If this command is clicked, the command id would be equal to one of the following:

User specific command ids
User specific command ids

Command would indicate the type of the button (minimized toolbar, menu, macro button etc.), and the User Command Id will be equal to the user id of a custom button. This is a command user id which can be retrieved via ICommandGroup::CommandId property while creating the custom commands manager in the SOLIDWORKS add-in.

Capturing the commands from the custom add-in
Capturing the commands from the custom add-in

Creating macro

  • Add User Form module to the macro and name it CommandsMonitorForm

VBA project structure
VBA project structure

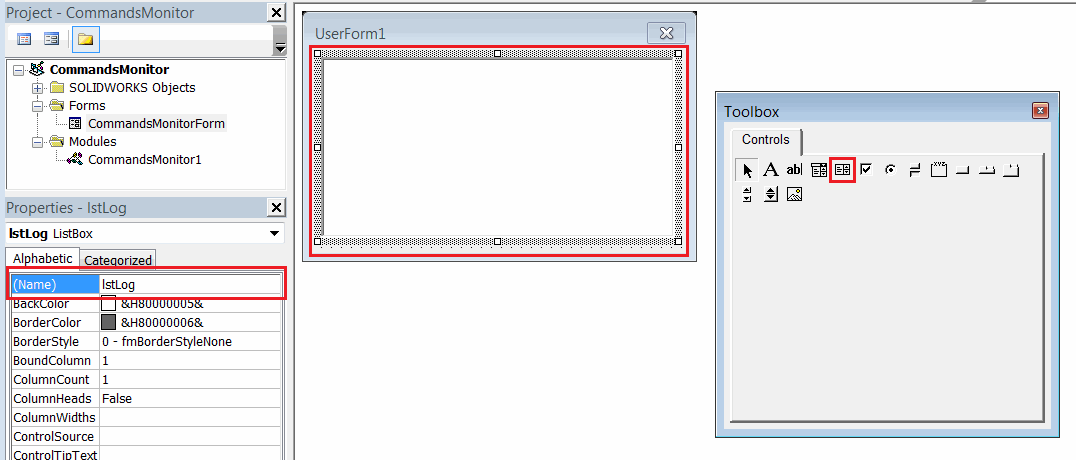

  • Drag-n-drop the List Box control onto the form and name it lstLog

Adding list box control to the form
Adding list box control to the form

  • Add the code to corresponding modules


Sub main()
    CommandsMonitorForm.Show vbModeless
End Sub


Dim WithEvents swApp As SldWorks.SldWorks

Private Sub UserForm_Initialize()
    Set swApp = Application.SldWorks
End Sub

Private Function swApp_CommandOpenPreNotify(ByVal Command As Long, ByVal UserCommand As Long) As Long
    lstLog.AddItem "Command: " & Command & "; User Command:" & UserCommand
End Function
