Traversing the components tree using SOLIDWORKS API

Edit ArticleEdit Article
Comments

This example demonstrates how to traverse components tree in the assembly using SOLIDWORKS API and output the result using the specified indentation symbol.

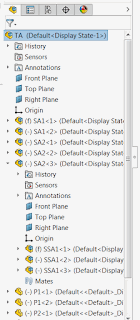

Components Tree
Components Tree

Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2

Const INDENT_SYMBOL As String = "    "

Sub main()

    Set swApp = Application.SldWorks

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim swRootComp As SldWorks.Component2

        Set swRootComp = swModel.ConfigurationManager.ActiveConfiguration.GetRootComponent

        TraverseComponent swRootComp, ""

    Else

        MsgBox "Please open assembly"

    End If

End Sub

Sub TraverseComponent(comp As SldWorks.Component2, indent As String)

    Dim vChildComps As Variant

    vChildComps = comp.GetChildren

    Dim i As Integer

    For i = 0 To UBound(vChildComps)

        Dim swChildComp As SldWorks.Component2
        Set swChildComp = vChildComps(i)

        Debug.Print indent & swChildComp.Name2 & " (" & swChildComp.GetPathName() & ")"

        TraverseComponent swChildComp, indent & INDENT_SYMBOL

    Next

End Sub
