Renaming permanent and virtual components using SOLIDWORKS API

Edit ArticleEdit Article

This VBA macro renames any selected components (root level, component in sub-assembly and virtual) using SOLIDWORKS API.

New name of the component is composed from the specified SUFFIX value

Const SUFFIX As String = "_New" 'new component name will be appended with the '_New' suffix
Const PRP_NAME As String = "PartNo" 'new component name will be composed form the value of 'PartNo' custom property

If PRP_NAME constant is specified, name of the component will be composed from the value of this custom property. Macro will try to read this property from configuration specific property and if not specified, value will be read from file custom property.

If PRP_NAME constant is not specified, component base name will derive from existing component name.

Component Name

IComponent2::Name2 SOLIDWORKS API property provides get and set accessors for reading and changing the component name respectively.

This function returns different names structures when setting or getting. That means if it is required to rename component using its original name (i.e. add suffix or prefix) value returned from get-accessor needs to be altered.

When get accessor is called full name of the component is returned, while set accessor only requires short name.

Full name of the component consists of

  • Component Name
  • Component Index (specified after - symbol in full name)
  • Context name for virtual component (specified after ^ symbol in the full name)
  • Parent assembly full name (specified before / symbol in the full name)

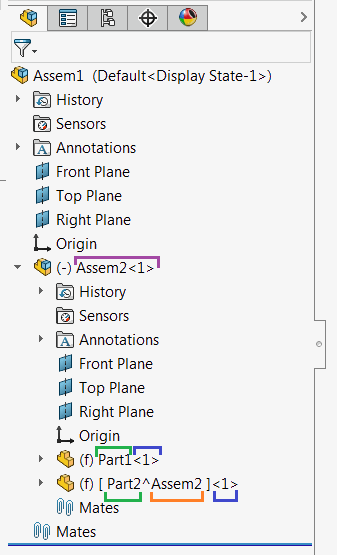

Components in the feature tree
Components in the feature tree

The names of the components in the structure above will be returned as the following (the colors in the picture match the parts in names)

Assem2-1 Root component

Assem2-1/Part1-1 Component in sub-assembly

Assem2-1/Part2^Assem2-1 virtual component in sub-assembly

Const SUFFIX As String = "_Renamed"
Const PRP_NAME As String = ""

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    If False <> swApp.GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefUpdateCompNames) Then
        Err.Raise vbError, "", "Uncheck option System Options->External References->Updated component names when documents are replaced"
    End If

    Dim swModel As SldWorks.ModelDoc2
    Dim swSelMgr As SldWorks.SelectionMgr

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        Dim vComps As Variant
        vComps = GetSelectedComponents(swModel)

        If Not IsEmpty(vComps) Then

            Dim i As Integer

            For i = 0 To UBound(vComps)

                Dim swComp As SldWorks.Component2

                Set swComp = vComps(i)

                Dim newCompName As String
                newCompName = GetNewComponentName(swComp)

                Dim compInst As Integer
                compInst = GetComponentInstance(swComp)

                If False <> swComp.Select4(False, Nothing, False) Then
                    swComp.Name2 = newCompName

                    If LCase(swComp.Name2) <> LCase(newCompName & "-" & compInst) Then
                        Err.Raise vbError, "", "Failed to rename component '" & swComp.Name2 & "' to '" & newCompName & "'"
                    End If
                Else
                    Err.Raise vbError, "", "Failed to select component '" & swComp.Name2 & "'"
                End If

            Next

        Else
            Err.Raise vbError, "", "Please select components to rename"
        End If

    Else
        MsgBox "Please open assembly document"
    End If

End Sub

Function GetNewComponentName(comp As SldWorks.Component2) As String

    Dim compName As String

    If PRP_NAME <> "" Then
        compName = GetCustomPropertyValue(comp, PRP_NAME)

        If compName = "" Then
            Err.Raise vbError, "", "Failed to get custom proeprty value from '" & comp.Name2 & "'"
        End If
    Else
        compName = comp.Name2

        If Not comp.GetParent() Is Nothing Then
            'if not root remove the sub-assemblies name
            compName = Right(compName, Len(compName) - InStrRev(compName, "/"))
        End If

        If comp.IsVirtual() Then
            'if virtual remove the context assembly name
            compName = Left(compName, InStr(compName, "^") - 1)
        Else
            'remove the index name
            compName = Left(compName, InStrRev(compName, "-") - 1)
        End If
    End If

    Dim newCompName As String
    newCompName = compName & SUFFIX

    GetNewComponentName = newCompName

End Function

Function GetComponentInstance(comp As SldWorks.Component2) As Integer

    Dim instId As Integer
    Dim compName As String
    compName = comp.Name2
    instId = CInt(Right(compName, Len(compName) - InStrRev(compName, "-")))

    GetComponentInstance = instId

End Function

Function GetCustomPropertyValue(comp As SldWorks.Component2, prpName As String) As String

    Dim swRefDoc As SldWorks.ModelDoc2
    Set swRefDoc = comp.GetModelDoc2

    If Not swRefDoc Is Nothing Then
        Dim prpVal As String

        swRefDoc.Extension.CustomPropertyManager(comp.ReferencedConfiguration).Get3 prpName, False, "", prpVal

        If prpVal = "" Then
            swRefDoc.Extension.CustomPropertyManager("").Get3 prpName, False, "", prpVal
        End If

        GetCustomPropertyValue = prpVal

    Else
        Err.Raise vbError, "", "Reference document of '" & swComp.Name2 & "' is not loaded"
    End If

End Function

Function GetSelectedComponents(model As SldWorks.ModelDoc2) As Variant

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    Dim swComps() As SldWorks.Component2

    Dim i As Integer

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        Dim swComp As SldWorks.Component2

        Set swComp = swSelMgr.GetSelectedObjectsComponent4(i, -1)

        If Not swComp Is Nothing Then

            If (Not swComps) = -1 Then
                ReDim swComps(0)
                Set swComps(0) = swComp
            Else
                If Not Contains(swComps, swComp) Then
                    ReDim Preserve swComps(UBound(swComps) + 1)
                    Set swComps(UBound(swComps)) = swComp
                End If
            End If

        End If

    Next

    If (Not swComps) = -1 Then
        GetSelectedComponents = Empty
    Else
        GetSelectedComponents = swComps
    End If

End Function

Function Contains(vArr As Variant, item As Object) As Boolean

    Dim i As Integer

    For i = 0 To UBound(vArr)
        If vArr(i) Is item Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function
