Macro to add display data marks to configuration used by the main SOLIDWORKS assembly

This VBA macro is useful for the users working with assemblies in the Large Design Review mode or when it is required to support configurations in eDrawings.

By default only active configuration is preserved for using the the Large Design Review mode and other configurations of the assembly cannot be activated:

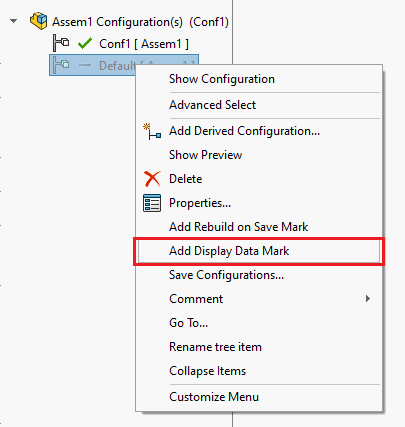

No display marks in the assembly configurations

This macro will traverse all components of the root assembly and find all the used configurations and add the display mark data to all of them.

This will allow to open all sub components in the Large Design Review mode and activate used configurations.

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swAssy As SldWorks.AssemblyDoc
    Set swAssy = swApp.ActiveDoc

    If Not swAssy Is Nothing Then

        Dim vComps As Variant
        vComps = CollectSelectedComponents(swAssy)

        If IsEmpty(vComps) Then
            vComps = swAssy.GetComponents(False)
        End If

        Dim files As Object
        Set files = CollectFilesNeedDisplayMarks(vComps, swAssy.GetPathName)

        For Each filePath In files.Keys
            Dim vConfNames As Variant
            vConfNames = files.item(filePath)
            AddDisplayMarks CStr(filePath), vConfNames
        Next

    Else
        Err.Raise vbError, "", "Open assembly"
    End If

End Sub

Function CollectSelectedComponents(model As SldWorks.ModelDoc2) As Variant

    Dim i As Integer

    Dim swSelMgr As SldWorks.SelectionMgr
    Set swSelMgr = model.SelectionManager

    Dim swComps() As SldWorks.Component2
    Dim isInit As Boolean

    For i = 1 To swSelMgr.GetSelectedObjectCount2(-1)

        If swSelMgr.GetSelectedObjectType3(i, -1) = swSelectType_e.swSelCOMPONENTS Then

            Dim swComp As SldWorks.Component2
            Set swComp = swSelMgr.GetSelectedObject6(i, -1)

            If Not isInit Then
                isInit = True
                ReDim swComps(0)
            Else
                ReDim Preserve swComps(UBound(swComps) + 1)
            End If

            Set swComps(UBound(swComps)) = swComp

        End If
    Next

    If isInit Then
        CollectSelectedComponents = swComps
    Else
        CollectSelectedComponents = Empty
    End If

End Function

Function CollectFilesNeedDisplayMarks(comps As Variant, rootDocPath As String) As Object

    Dim files As Object
    Set files = CreateObject("Scripting.Dictionary")

    Dim i As Integer

    For i = 0 To UBound(comps)

        Dim swComp As SldWorks.Component2
        Set swComp = comps(i)

        Dim filePath As String
        filePath = ResolveReferencePath(rootDocPath, swComp.GetPathName())

        If Dir(filePath) <> "" Then

            Dim refConfName As String
            refConfName = swComp.ReferencedConfiguration

            Dim activeConfName As String
            activeConfName = swApp.GetActiveConfigurationName(swComp.GetPathName())

            Dim confNames() As String

            If LCase(refConfName) <> LCase(activeConfName) Then
                If files.Exists(LCase(filePath)) Then
                    confNames = files(LCase(filePath))
                    If Not Contains(confNames, refConfName) Then
                        ReDim Preserve confNames(UBound(confNames) + 1)
                        confNames(UBound(confNames)) = refConfName
                        files(LCase(filePath)) = confNames
                    End If
                Else
                    ReDim confNames(0)
                    confNames(0) = refConfName
                    files.Add LCase(filePath), confNames
                End If
            End If
        Else
            Debug.Print "Failed to resolve component " & swComp.Name2 & " path: " & filePath
        End If

    Next

    Set CollectFilesNeedDisplayMarks = files

End Function

Function Contains(arr() As String, item As String) As Boolean

    Dim i As Integer

    For i = 0 To UBound(arr)
        If LCase(arr(i)) = LCase(item) Then
            Contains = True
            Exit Function
        End If
    Next

    Contains = False

End Function

Sub AddDisplayMarks(filePath As String, confNames As Variant)

    Debug.Print "Adding display mark for " & filePath

    Dim swModel As SldWorks.ModelDoc2
    Dim swDocSpec As SldWorks.DocumentSpecification

    Set swDocSpec = swApp.GetOpenDocSpec(filePath)

    swDocSpec.LightWeight = False
    swDocSpec.ViewOnly = False
    swDocSpec.Silent = True

    Set swModel = swApp.OpenDoc7(swDocSpec)

    If Not swModel Is Nothing Then

        Set swModel = swApp.ActivateDoc3(swModel.GetTitle(), False, swRebuildOnActivation_e.swDontRebuildActiveDoc, -1)

        If Not swModel Is Nothing Then

            Dim i As Integer

            For i = 0 To UBound(confNames)
                Dim swConf As SldWorks.Configuration
                Set swConf = swModel.GetConfigurationByName(CStr(confNames(i)))
                swConf.LargeDesignReviewMark = True
            Next

            swModel.ForceRebuild3 False

            swModel.Save3 swSaveAsOptions_e.swSaveAsOptions_Silent, 0, 0

            swApp.CloseDoc swModel.GetTitle

        Else
            Debug.Print "Failed to activate document: " & filePath
        End If

    Else
        Debug.Print "Failed to open document: " & filePath
    End If

End Sub

Function ResolveReferencePath(rootDocPath As String, refPath As String) As String

    Dim pathParts As Variant
    pathParts = Split(refPath, "\")

    Dim rootFolder As String
    rootFolder = rootDocPath
    rootFolder = Left(rootFolder, InStrRev(rootFolder, "\") - 1)

    Dim i As Integer

    Dim curRelPath As String

    For i = UBound(pathParts) To 1 Step -1

        curRelPath = pathParts(i) & IIf(curRelPath <> "", "\", "") & curRelPath
        Dim path As String
        path = rootFolder & "\" & curRelPath

        If Dir(path) <> "" Then
            ResolveReferencePath = path
            Exit Function
        End If

    Next

    ResolveReferencePath = refPath

End Function

Alternative version of the macro will only process configurations of the active part or assembly and add the Display Data marks

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2

    Set swModel = swApp.ActiveDoc

    If Not swModel Is Nothing Then

        If swModel.GetType() = swDocumentTypes_e.swDocASSEMBLY Or swModel.GetType() = swDocumentTypes_e.swDocPART Then

            Dim vConfNames As Variant
            vConfNames = swModel.GetConfigurationNames

            Dim i As Integer

            For i = 0 To UBound(vConfNames)
                Dim swConf As SldWorks.Configuration
                Set swConf = swModel.GetConfigurationByName(CStr(vConfNames(i)))
                swConf.LargeDesignReviewMark = True
            Next

            swModel.ForceRebuild3 False

        Else
            Err.Raise vbError, "", "Only assemblies and parts are supported"
        End If

    Else
        Err.Raise vbError, "", "No files opened"
    End If

End Sub
